Used Equipment For Sale

Mini Excavator #19 Gehl Z55

Key: EX 19
Manufacturer: Gehl
Model: Z55
Sale Price: $58,000.00
Comments:

Operating Weight with Canopy11,850 lbs.
Operating Weight with Cab(Actual Weight 12,320 lbs.)
A Max. Digging Depth12' 9.5"
B Max. Vertical Wall Digging Depth8' 4.8"
C Max. Reach at Ground Level20' 1.7"
D Transport Length18' 3.7"
E Undercarriage Length8' 6"
F Max. Digging Height19' 10.6"
G Max. Dump Height13' 3.4"
H Minimum Front Swing Radius6' 11.1"
I Transport Height8' 4"
J Blade Below Ground/ w/angle blade1' 10.4" / 1' 9.3"
K Overall Base Width6' 6.3"
L Track Width1' 3.7"
M Ground Clearance1' 1.6"
N Parallel Offset Right2' 6.3"
O Parallel Offset Left2' 2.8"
P Rear End Swing Radius3' 2.2"
Engine
MakeYanmar
Model4TNV86CT Tier IV
TypeDiesel
Displacement 128 cu.in.
Net Power @ rpm44.9 hp @ 2400
Fuel Tank 17.4 gal.
Fuel Consumption 1.35 gal./hr
Hydraulic System
Pumps2 variable, 2 gear
Total Flow Rate 36.9 gpm
Working Pressure 3,553 psi
Swing System Pressure 3,133 psi
Oil CoolerStandard
Hydraulic Tank 10.0 gal.
Undercarriage And Slewing System
Travel Speed - dual1.4/2.6 mph
Gradability20
Track Type/WidthRubber/15.7"
Number of Rollers per Side (Track/Idle)4/1
Undercarriage Length8' 6"
Track Length on Ground7' 4.4"
Ground Clearance13.6"
Ground Pressure - Cab/Canopy4.4/4.3 psi
Slew Speed10 rpm
Maximum Drawbar Pull12,544 lbs.
Maximum Bucket Breakout7,464 lbs.
Maximum Arm Digging Force5,058 lbs.
Dozer Blade
Width - extended/retracted6' 5.6"
Height15.7"
A certificate of insurance is required with a minimum of one million dollar liability by the renter for this item. The certificate must name Koberstein Rental and Sales, Inc. as the additional insured. Damage coverage must also be obtained for this unit.

Where to find Mini Excavator 19 Gehl Z55 in Evansville

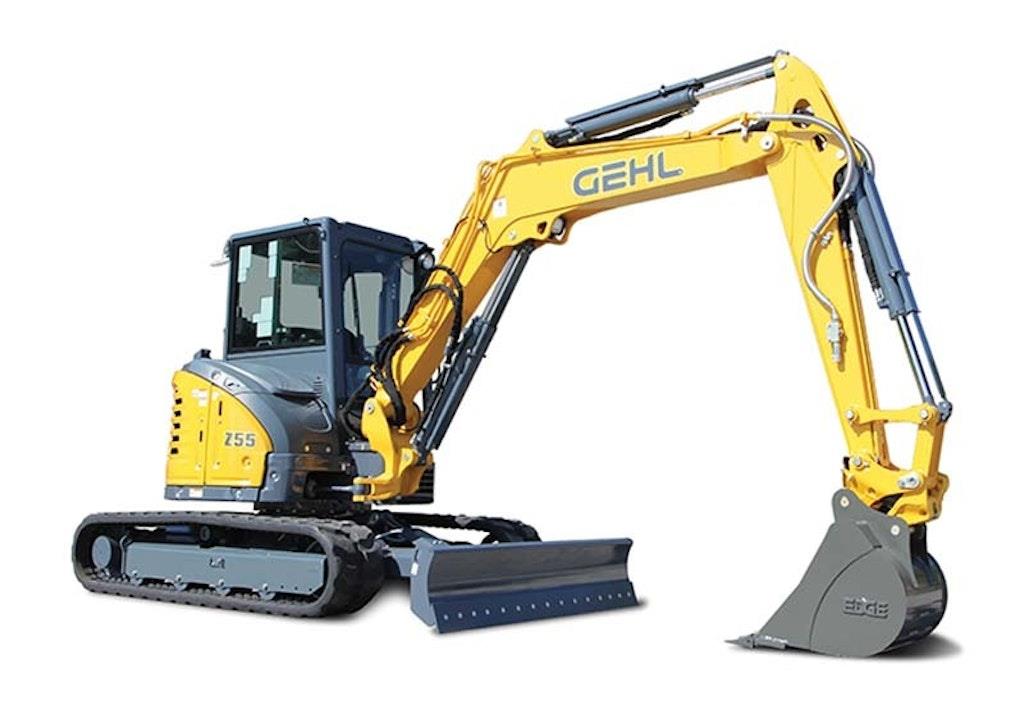

Image for reference only
Actual item may look different
Click on image for larger view

* Prices are subject to change.
